- Introduction
- Manual simulation of a
`multi_index_container`

- Spatial efficiency
- Time efficiency
- Performance tests
- Conclusions

Boost.MultiIndex helps the programmer to avoid the manual construction of cumbersome
compositions of containers when multiindexing capabilities are needed. Furthermore,
it does so in an efficient manner, both in terms of space and time consumption. The
space savings stem from the compact representation of the underlying data structures,
requiring a single node per element. As for time efficiency, Boost.MultiIndex
intensively uses metaprogramming techniques producing very tight implementations
of member functions which take care of the elementary operations for each index:
for `multi_index_container`

s with two or more indices, the running time
can be reduced to half as long as with manual simulations involving several
STL containers.

`multi_index_container`

The section of simulation
of standard containers with `multi_index_container`

shows the equivalence
between single-index `multi_index_container`

s and some STL containers. Let us now
concentrate on the problem of simulating a `multi_index_container`

with two
or more indices with a suitable combination of standard containers.

Consider the following instantiation of `multi_index_container`

:

typedef multi_index_container< int, indexed_by< ordered_unique<identity<int> >, ordered_non_unique<identity<int>, std::greater >, > > indexed_t;

`indexed_t`

maintains two internal indices on elements of type
`int`

. In order to simulate this data structure resorting only to
standard STL containers, one can use on a first approach the following types:

// dereferencing compare predicate template<typename Iterator,typename Compare> struct it_compare { bool operator()(const Iterator& x,const Iterator& y)const { return comp(*x,*y); } private: Compare comp; }; typedef std::set<int> manual_t1; // equivalent to indexed_t's index #0 typedef std::multiset< const int*, it_compare< const int*, std::greater<int> > > manual_t2; // equivalent to indexed_t's index #1

where `manual_t1`

is the "base" container that holds
the actual elements, and `manual_t2`

stores pointers to
elements of `manual_t1`

. This scheme turns out to be quite
inefficient, though: while insertion into the data structure is simple enough:

deletion, on the other hand, necessitates a logarithmic search, whereasmanual_t1 c1; manual_t2 c2; // insert the element 5 manual_t1::iterator=c1.insert(5).first; c2.insert(&*t1);

`indexed_t`

deletes in constant time:
// remove the element pointed to by it2 manual_t2::iterator it2=...; c1.erase(*it2); // watch out! performs in logarithmic time c2.erase(it1);

The right approach consists of feeding the second container not with
raw pointers, but with elements of type `manual_t1::iterator`

:

typedef std::set<int> manual_t1; // equivalent to indexed_t's index #0 typedef std::multiset< manual_t1::iterator, it_compare< manual_t1::iterator, std::greater<int> > > manual_t2; // equivalent to indexed_t's index #1

Now, insertion and deletion can be performed with complexity bounds
equivalent to those of `indexed_t`

:

manual_t1 c1; manual_t2 c2; // insert the element 5 manual_t1::iterator=c1.insert(5).first; c2.insert(t1); // remove the element pointed to by it2 manual_t2::iterator it2=...; c1.erase(*it2); // OK: constant time c2.erase(it1);

The construction can be extended in a straightworward manner to
handle more than two indices. In what follows, we will compare
instantiations of `multi_index_container`

against this sort of
manual simulations.

The gain in space consumption of `multi_index_container`

with
respect to its manual simulations is amenable to a very simple
theoretical analysis. For simplicity, we will ignore alignment
issues (which in general play in favor of `multi_index_container`

.)

Nodes of a `multi_index_container`

with *N* indices hold the value
of the element plus *N* headers containing linking information for
each index. Thus the node size is

S=_{I}e+h_{0}+ ··· +h_{N-1}, where

e= size of the element,

h_{i}= size of thei-th header.

On the other hand, the manual simulation allocates *N* nodes per
element, the first holding the elements themselves and the rest
storing iterators to the "base" container. In practice, an iterator
merely holds a raw pointer to the node it is associated to, so its size
is independent of the type of the elements. Suming all contributions,
the space allocated per element in a manual simulation is

S= (_{M}e+h_{0}) + (p+h_{1}) + ··· + (p+h_{N-1}) =S+ (_{I}N-1)p, where

p= size of a pointer.

The relative amount of memory taken up by `multi_index_container`

with respect to its manual simulation is just
*S _{I}* /

S/_{I}S=_{M}S/ (_{I}S+ (_{I}N-1)p).

The formula shows that `multi_index_container`

is more efficient
with regard to memory consumption as the number of indices grow.

These considerations have overlooked an aspect of the greatest practical
importance: the fact that `multi_index_container`

allocates a single
node per element, compared to the many nodes of different sizes
built by manual simulations, diminishes memory fragmentation, which
can show up in more usable memory available and better performance.

From the point of view of computational complexity (i.e. big-O
characterization), `multi_index_container`

and its corresponding manual
simulations are equivalent: inserting an element into
a `multi_index_container`

reduces to a simple combination of
elementary insertion operations on each of the indices, and
similarly for deletion. Hence, the most we can expect is a reduction
(or increase) of execution time by a roughly constant factor. As we
will see later, the reduction can be very significative for
`multi_index_container`

s with two or more indices.

In the special case of `multi_index_container`

s with only one index,
the best we can hope for is equal performance: the tests show that the
performance degradation in this particular situation ranges from negligible
to small, depending on the compiler used.

See source code used for measurements.

In order to assess the efficiency of `multi_index_container`

, the following
basic algorithm

multi_index_container<...> c; for(int i=0;i<n;++i)c.insert(i); for(iterator it=c.begin();it!=c.end();)c.erase(it++);

has been measured for different instantiations of `multi_index_container`

at values of *n* 1,000, 10,000 and 100,000,
and its execution time compared with that of the equivalent algorithm
for the corresponding manual simulation of the data structure based on
STL containers. The following compilers have been used:

- GNU GCC 3.3.1 for Cygwin 1.5.7,
- Intel C++ Compiler for Windows 32-bit 7.1,
- Microsoft Visual C++ 6.0 Service Pack 5,

The relative memory consumption (i.e. the amount of memory allocated
by a `multi_index_container`

with respect to its manual simulation)
is determined by dividing the size of a `multi_index_container`

node
by the sum of node sizes of all the containers integrating the
simulating data structure.

The following instantiation of `multi_index_container`

was tested:

multi_index_container< int, indexed_by< ordered_unique<identity<int> > > >

which is functionally equivalent to `std::set<int>`

.

GCC 3.1.1 | ICC 7.1 | MSVC 6.5 |
---|---|---|

100% | 100% | 100% |

`multi_index_container`

with 1
ordered index.
The figures confirm that in this case `multi_index_container`

nodes are the
same size than those of its `std::set`

counterpart.

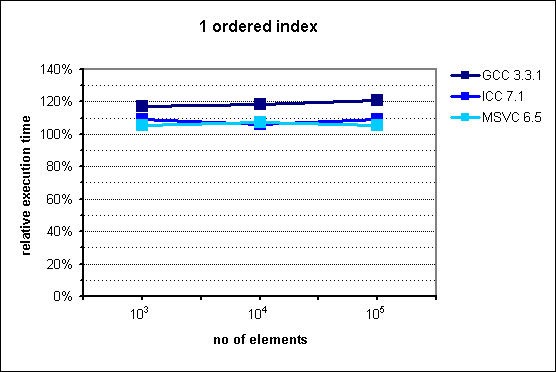

**Fig. 1: Performance of multi_index_container with 1 ordered index.**

As expected, `multi_index_container`

does perform in this case somewhat
worse than `std::set`

. The degradation is within 10% for ICC and
MSVC compilers, while in GCC peaks to 20%, which can be significative
in certain applications. This latter result is presumably accounted for by
a lower quality of the optimizing stage carried out by GCC.

The following instantiation of `multi_index_container`

was tested:

multi_index_container< int, indexed_by< sequenced<> > >

which is functionally equivalent to `std::list<int>`

.

GCC 3.1.1 | ICC 7.1 | MSVC 6.5 |
---|---|---|

100% | 100% | 100% |

`multi_index_container`

with 1
sequenced index.
The figures confirm that in this case `multi_index_container`

nodes are the
same size than those of its `std::list`

counterpart.

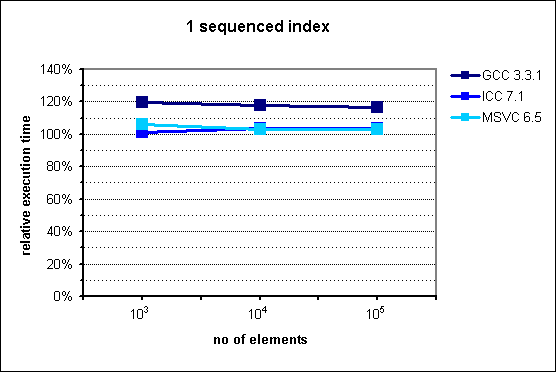

**Fig. 2: Performance of multi_index_container with 1 sequenced index.**

As in the former case, `multi_index_container`

does not attain the performance
of its STL counterpart. Again, worst results are those of GCC, with a
degradation of up to 20% , while ICC and MSVC do not exceed a mere 5%.

The following instantiation of `multi_index_container`

was tested:

multi_index_container< int, indexed_by< ordered_unique<identity<int> >, ordered_non_unique<identity<int> > > >

GCC 3.1.1 | ICC 7.1 | MSVC 6.5 |
---|---|---|

90% | 90% | 90% |

`multi_index_container`

with 2
ordered indices.
These results concinde with the theoretical formula for
*S _{I}*=36 and

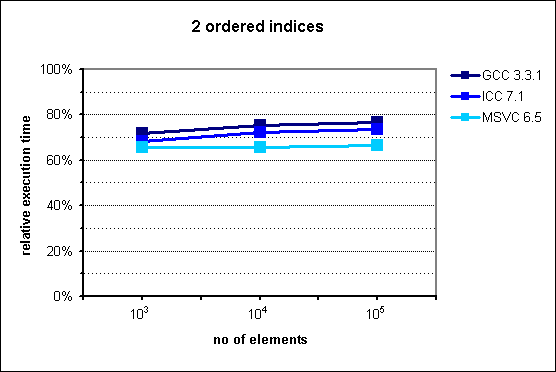

**Fig. 3: Performance of multi_index_container with 2 ordered indices.**

The experimental results confirm our hypothesis that `multi_index_container`

provides an improvement on execution time by an approximately constant factor,
which in this case ranges from 65% to 75% depending on the compiler.

The following instantiation of `multi_index_container`

was tested:

multi_index_container< int, indexed_by< ordered_unique<identity<int> >, sequenced<> > >

GCC 3.1.1 | ICC 7.1 | MSVC 6.5 |
---|---|---|

87.5% | 87.5% | 87.5% |

`multi_index_container`

with 1
ordered index + 1 sequenced index.
These results concinde with the theoretical formula for
*S _{I}*=28 and

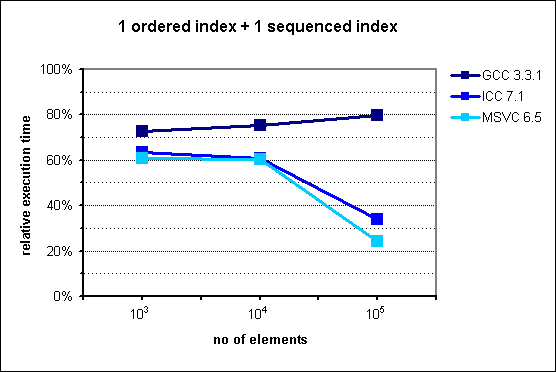

**Fig. 4: Performance of multi_index_container with 1 ordered index
+ 1 sequenced index.**

For *n*=10^{3} and *n*=10^{4}, the results
are in agreement with our theoretical analysis, showing a constant factor
improvement of 60-75% with respect to the STL-based manual simulation.
Curiously enough, this speedup gets even higher when
*n*=10^{5} for two of the compilers (35% for ICC,
25% for MSVC.) In order to rule out spurious results, the tests
have been run many times, yielding similar outcoumes. A tentative
explanation of this unexpected behavior may point to a degradation in
the execution time of the manual simulation, attributable to poor
performance of the standard STL allocator in ICC and MSVC when dealing
with many objects of diverse sizes (the manual simulation is comprised of
an `std::set`

and a `std::list`

, which demand
differently sized nodes.)

The following instantiation of `multi_index_container`

was tested:

multi_index_container< int, indexed_by< ordered_unique<identity<int> >, ordered_non_unique<identity<int> >, ordered_non_unique<identity<int> > > >

GCC 3.1.1 | ICC 7.1 | MSVC 6.5 |
---|---|---|

86.7% | 86.7% | 86.7% |

`multi_index_container`

with 3
ordered indices.
These results concinde with the theoretical formula for
*S _{I}*=52 and

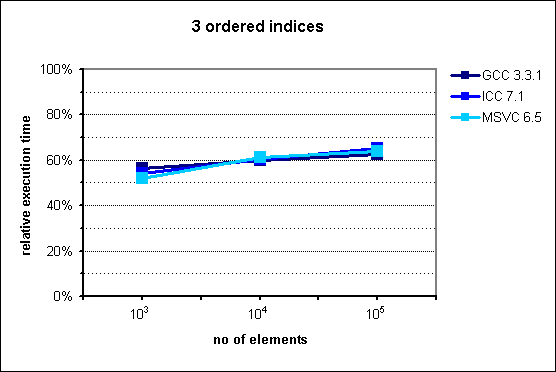

**Fig. 5: Performance of multi_index_container with 3 ordered indices.**

Execution time for this case is between 55% and 65% lower than achieved with an STL-based manual simulation of the same data structure.

The following instantiation of `multi_index_container`

was tested:

multi_index_container< int, indexed_by< ordered_unique<identity<int> >, ordered_non_unique<identity<int> >, sequenced<> > >

GCC 3.1.1 | ICC 7.1 | MSVC 6.5 |
---|---|---|

84.6% | 84.6% | 84.6% |

`multi_index_container`

with 2
ordered indices + 1 sequenced index.
These results concinde with the theoretical formula for
*S _{I}*=44 and

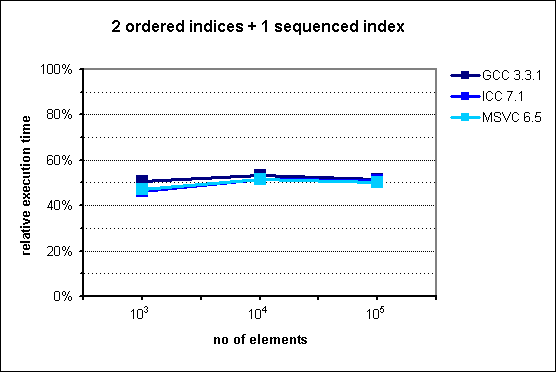

**Fig. 6: Performance of multi_index_container with 2 ordered indices
+ 1 sequenced index.**

In accordance to the expectations, execution time is improved by a fairly constant factor, which ranges from 45% to 55%.

We have shown that `multi_index_container`

outperforms, both in space and
time efficiency, equivalent data structures obtained from the manual
combination of STL containers. This improvement gets larger when the number
of indices increase.

In the special case of replacing standard containers with single-indexed
`multi_index_container`

s, the programmer should balance the benefits brought on
by Boost.MultiIndex (subobject searching, in-place updating, etc.) against the
resulting degradation in execution time. Depending on the compiler, this degradation
can reach up to 20% of the original time.

Revised September 7th 2004
