template<typename Graph, typename PlanarEmbedding, typename PlanarFaceVisitor, typename EdgeIndexMap> void planar_face_traversal(const Graph& g, PlanarEmbedding embedding, PlanarFaceVisitor& visitor, EdgeIndexMap em);

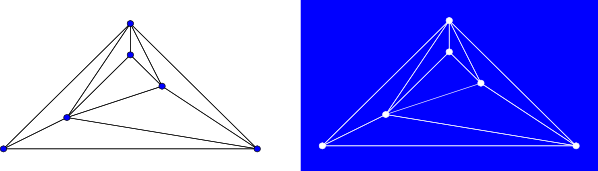

A graph is *planar* if it can be drawn in two-dimensional space with no
two of its edges crossing. Any embedding of a planar graph separates the plane
into distinct regions that are bounded by sequences of edges in the graph.
These regions are called *faces*.

A traversal of the faces of a planar graph involves iterating through all faces of the graph, and on each face, iterating through all vertices and edges of the face. The iteration through all vertices and edges of each face follows a path around the border of the face.

In a biconnected graph, like the one shown above, each face is bounded by a
cycle and each edge belongs to exactly two faces. For this reason, when
`planar_face_traversal` is called on a biconnected graph, each edge will
be visited exactly twice: once on each of two distinct faces, and no vertex
will be visited more than once on a particular face. The output of
`planar_face_traversal` on non-biconnected graphs is less intuitive -
for example, if the graph
consists solely of a path of vertices (and therefore a single face),
`planar_face_traversal` will iterate *around* the path, visiting
each edge twice and visiting some vertices more than once.
`planar_face_traversal` does not visit isolated vertices.

Like other graph traversal algorithms in the Boost Graph Library, the planar
face traversal is a generic traversal that can be customized by the
redefinition of certain visitor event points. By defining an appropriate
visitor, this traversal can be
used to enumerate the faces of a planar graph, triangulate a planar graph, or
even construct a dual of a planar graph.

For example, on the above graph, an instance

struct output_visitor: public planar_face_traversal_visitor { void begin_face() { std::cout << "New face: "; } template <typename Vertex> void next_vertex(Vertex v) { std::cout << v << " "; } void finish_face() { std::cout << std::endl; } };can be passed to the

output_visitor my_visitor; planar_face_traversal(g, embed, my_visitor); //embed is a planar embedding of gand might produce the output

New face: 1 2 5 4 New face: 2 3 4 5 New face: 3 0 1 4 New face: 2 3 0 1

`visitor.begin_traversal()`: called once before any faces are visited.`visitor.begin_face()`: called once, for each face, before any vertex or edge on that face has been visited.`visitor.end_face()`: called once, for each face, after all vertices and all edges on that face have been visited.`visitor.next_vertex(Vertex v)`: called once on each vertex in the current face (the start and end of which are designated by calls to`begin_face()`and`end_face()`, respectively) in order according to the order established by the planar embedding.`visitor.next_edge(Edge e)`: called once on each edge in the current face (the start and end of which are designated by calls to`begin_face()`and`end_face()`, respectively) in order according to the order established by the planar embedding.`visitor.end_traversal()`: called once after all faces have been visited.

`planar_face_traversal` iterates over a copy of the edges of the input
graph, so it is safe to add edges to the graph during visitor event points.

`boost/graph/planar_face_traversal.hpp`

An undirected graph. The graph type must be a model of VertexAndEdgeListGraphIN:

A model of PlanarEmbedding.IN:

A model of PlanarFaceVisitor.IN:

A Readable Property Map that maps edges fromgto distinct integers in the range[0, num_edges(g) )

Default:get(edge_index,g)

`examples/planar_face_traversal.cpp`
