simplify

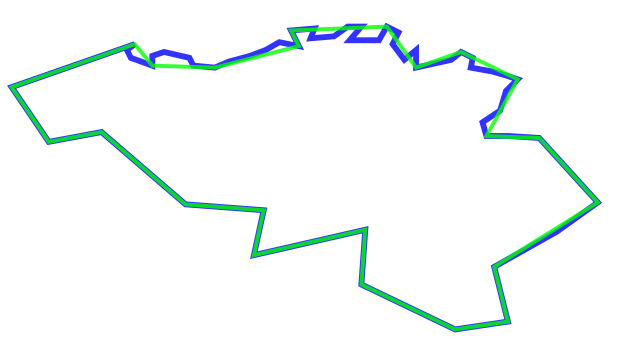

Simplify a geometry.

Synopsis

```template<typename Geometry, typename Distance>
void simplify(Geometry const & geometry, Geometry & out, Distance const & max_distance)```

Parameters

Type

Concept

Name

Description

Geometry const &

Any type fulfilling a Geometry Concept

geometry

input geometry, to be simplified

Geometry &

Any type fulfilling a Geometry Concept

out

output geometry, simplified version of the input geometry

Distance const &

numerical type (int, double, ttmath, ...)

max_distance

distance (in units of input coordinates) of a vertex to other segments to be removed

Either

`#include <boost/geometry/geometry.hpp>`

Or

`#include <boost/geometry/algorithms/simplify.hpp>`

Examples

Example showing how to simplify a linestring

```#include <iostream>

#include <boost/geometry.hpp>
#include <boost/geometry/geometries/linestring.hpp>
#include <boost/geometry/geometries/point_xy.hpp>

#include <boost/assign.hpp>

using namespace boost::assign;

int main()
{
typedef boost::geometry::model::d2::point_xy<double> xy;

boost::geometry::model::linestring<xy> line;
line += xy(1.1, 1.1), xy(2.5, 2.1), xy(3.1, 3.1), xy(4.9, 1.1), xy(3.1, 1.9);

// Simplify it, using distance of 0.5 units
boost::geometry::model::linestring<xy> simplified;
boost::geometry::simplify(line, simplified, 0.5);
std::cout
<< "  original: " << boost::geometry::dsv(line) << std::endl
<< "simplified: " << boost::geometry::dsv(simplified) << std::endl;

return 0;
}

```

 For this example we use Boost.Assign to add points With Boost.Assign

Output:

```original: ((1.1, 1.1), (2.5, 2.1), (3.1, 3.1), (4.9, 1.1), (3.1, 1.9))
simplified: ((1.1, 1.1), (3.1, 3.1), (4.9, 1.1), (3.1, 1.9))
```
