template <class T1, class T2>calculated-result-typecyl_bessel_j(T1 v, T2 x); template <class T1, class T2, class Policy>calculated-result-typecyl_bessel_j(T1 v, T2 x, const Policy&); template <class T1, class T2>calculated-result-typecyl_neumann(T1 v, T2 x); template <class T1, class T2, class Policy>calculated-result-typecyl_neumann(T1 v, T2 x, const Policy&);

The functions cyl_bessel_j and cyl_neumann return the result of the Bessel functions of the first and second kinds respectively:

cyl_bessel_j(v, x) = J_{v}(x)

cyl_neumann(v, x) = Y_{v}(x) = N_{v}(x)

where:

The return type of these functions is computed using the *result
type calculation rules* when T1 and T2 are different types.
The functions are also optimised for the relatively common case that T1
is an integer.

The final Policy argument is optional and can be used to control the behaviour of the function: how it handles errors, what level of precision to use etc. Refer to the policy documentation for more details.

The functions return the result of domain_error
whenever the result is undefined or complex. For cyl_bessel_j
this occurs when ```
x <
0
```

and v is not an integer, or when
```
x ==
0
```

and ```
v
!= 0
```

.
For cyl_neumann
this occurs when ```
x <=
0
```

.

The following graph illustrates the cyclic nature of J_{v}:

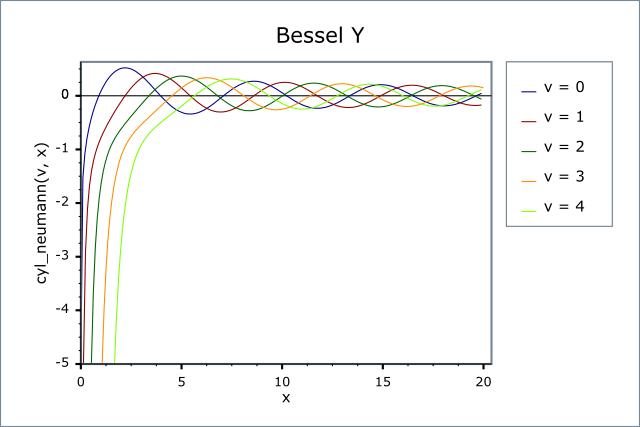

The following graph shows the behaviour of Y_{v}: this is also cyclic for
large *x*, but tends to -∞ for small *x*:

There are two sets of test values: spot values calculated using functions.wolfram.com, and a much larger set of tests computed using a simplified version of this implementation (with all the special case handling removed).

The following tables show how the accuracy of these functions varies on
various platforms, along with comparisons to the GSL-1.9
and Cephes libraries.
Note that the cyclic nature of these functions means that they have an
infinite number of irrational roots: in general these functions have arbitrarily
large *relative* errors when the arguments are sufficiently
close to a root. Of course the absolute error in such cases is always small.
Note that only results for the widest floating-point type on the system
are given as narrower types have effectively
zero error. All values are relative errors in units of epsilon.

**Table 39. Errors Rates in cyl_bessel_j**

Significand Size |
Platform and Compiler |
J |
J |
J |
---|---|---|---|---|

53 |
Win32 / Visual C++ 8.0 |
Peak=2.5 Mean=1.1 GSL Peak=6.6 Cephes Peak=2.5 Mean=1.1 |
Peak=11 Mean=2.2 GSL Peak=11 Cephes Peak=17 Mean=2.5 |
Peak=413 Mean=110
GSL Peak=6x10
Cephes Peak=2x10 |

64 |
Red Hat Linux IA64 / G++ 3.4 |
Peak=7 Mean=3 |
Peak=117 Mean=10 |
Peak=2x10 |

64 |
SUSE Linux AMD64 / G++ 4.1 |
Peak=7 Mean=3 |
Peak=400 Mean=40 |
Peak=2x10 |

113 |
HP-UX / HP aCC 6 |
Peak=14 Mean=6 |
Peak=29 Mean=3 |
Peak=2700 Mean=450 |

**Table 40. Errors Rates in cyl_neumann**

Significand Size |
Platform and Compiler |
J |
J |
J |
---|---|---|---|---|

53 |
Win32 / Visual C++ 8.0 |
Peak=330 Mean=54 GSL Peak=34 Mean=9 Cephes Peak=330 Mean=54 |
Peak=923 Mean=83 GSL Peak=500 Mean=54 Cephes Peak=923 Mean=83 |
Peak=561 Mean=36
GSL Peak=1.4x10 Cephes Peak=+INF |

64 |
Red Hat Linux IA64 / G++ 3.4 |
Peak=470 Mean=56 |
Peak=843 Mean=51 |
Peak=741 Mean=51 |

64 |
SUSE Linux AMD64 / G++ 4.1 |
Peak=1300 Mean=424 |
Peak=2x10 |
Peak=1x10 |

113 |
HP-UX / HP aCC 6 |
Peak=180 Mean=63 |
Peak=340 Mean=150 |
Peak=2x10 |

Note that for large *x* these functions are largely
dependent on the accuracy of the `std::sin`

and `std::cos`

functions.

Comparison to GSL and Cephes
is interesting: both Cephes
and this library optimise the integer order case - leading to identical
results - simply using the general case is for the most part slightly more
accurate though, as noted by the better accuracy of GSL in the integer
argument cases. This implementation tends to perform much better when the
arguments become large, Cephes
in particular produces some remarkably inaccurate results with some of
the test data (no significant figures correct), and even GSL performs badly
with some inputs to J_{v}. Note that by way of double-checking these results,
the worst performing Cephes
and GSL cases were recomputed using functions.wolfram.com,
and the result checked against our test data: no errors in the test data
were found.

The implementation is mostly about filtering off various special cases:

When *x* is negative, then the order *v*
must be an integer or the result is a domain error. If the order is an
integer then the function is odd for odd orders and even for even orders,
so we reflect to *x > 0*.

When the order *v* is negative then the reflection formulae
can be used to move to *v > 0*:

Note that if the order is an integer, then these formulae reduce to:

J_{-n} = (-1)^{n}J_{n}

Y_{-n} = (-1)^{n}Y_{n}

However, in general, a negative order implies that we will need to compute both J and Y.

When *x* is large compared to the order *v*
then the asymptotic expansions for large *x* in M. Abramowitz
and I.A. Stegun, *Handbook of Mathematical Functions*
9.2.19 are used (these were found to be more reliable than those in A&S
9.2.5).

When the order *v* is an integer the method first relates
the result to J_{0}, J_{1}, Y_{0} and Y_{1} using either forwards or backwards recurrence
(Miller's algorithm) depending upon which is stable. The values for J_{0},
J_{1}, Y_{0} and Y_{1} are calculated using the rational minimax approximations on
root-bracketing intervals for small *|x|* and Hankel
asymptotic expansion for large *|x|*. The coefficients
are from:

W.J. Cody, *ALGORITHM 715: SPECFUN - A Portable FORTRAN Package
of Special Function Routines and Test Drivers*, ACM Transactions
on Mathematical Software, vol 19, 22 (1993).

and

J.F. Hart et al, *Computer Approximations*, John Wiley
& Sons, New York, 1968.

These approximations are accurate to around 19 decimal digits: therefore these methods are not used when type T has more than 64 binary digits.

When *x* is small, J_{x} is best computed directly from
the series:

In the general case we compute J_{v} and Y_{v} simultaneously.

To get the initial values, let μ = ν - floor(ν + 1/2), then μ is the fractional
part of ν such that |μ| <= 1/2 (we need this for convergence later). The
idea is to calculate J_{μ}(x), J_{μ+1}(x), Y_{μ}(x), Y_{μ+1}(x) and use them to obtain
J_{ν}(x), Y_{ν}(x).

The algorithm is called Steed's method, which needs two continued fractions as well as the Wronskian:

See: F.S. Acton, *Numerical Methods that Work*, The
Mathematical Association of America, Washington, 1997.

The continued fractions are computed using the modified Lentz's method
(W.J. Lentz, *Generating Bessel functions in Mie scattering calculations
using continued fractions*, Applied Optics, vol 15, 668 (1976)).
Their convergence rates depend on *x*, therefore we
need different strategies for large *x* and small *x*.

*x > v*, CF1 needs O(*x*) iterations
to converge, CF2 converges rapidly

*x <= v*, CF1 converges rapidly, CF2 fails to converge
when *x* `->`

0

When *x* is large (*x* > 2), both
continued fractions converge (CF1 may be slow for really large *x*).
J_{μ}, J_{μ+1}, Y_{μ}, Y_{μ+1} can be calculated by

where

J_{ν} and Y_{μ} are then calculated using backward (Miller's algorithm) and forward
recurrence respectively.

When *x* is small (*x* <= 2),
CF2 convergence may fail (but CF1 works very well). The solution here is
Temme's series:

where

g_{k} and h_{k}
are also computed by recursions (involving gamma functions), but
the formulas are a little complicated, readers are refered to N.M. Temme,
*On the numerical evaluation of the ordinary Bessel function of
the second kind*, Journal of Computational Physics, vol 21, 343
(1976). Note Temme's series converge only for |μ| <= 1/2.

As the previous case, Y_{ν} is calculated from the forward recurrence, so is
Y_{ν+1}. With these two values and f_{ν}, the Wronskian yields J_{ν}(x) directly without
backward recurrence.
