#include <boost/math/special_functions/gamma.hpp>

namespace boost{ namespace math{ template <class T1, class T2>calculated-result-typegamma_p(T1 a, T2 z); template <class T1, class T2, class Policy>calculated-result-typegamma_p(T1 a, T2 z, const Policy&); template <class T1, class T2>calculated-result-typegamma_q(T1 a, T2 z); template <class T1, class T2, class Policy>calculated-result-typegamma_q(T1 a, T2 z, const Policy&); template <class T1, class T2>calculated-result-typetgamma_lower(T1 a, T2 z); template <class T1, class T2, class Policy>calculated-result-typetgamma_lower(T1 a, T2 z, const Policy&); template <class T1, class T2>calculated-result-typetgamma(T1 a, T2 z); template <class T1, class T2, class Policy>calculated-result-typetgamma(T1 a, T2 z, const Policy&); }} // namespaces

There are four incomplete
gamma functions: two are normalised versions (also known as *regularized*
incomplete gamma functions) that return values in the range [0, 1], and
two are non-normalised and return values in the range [0, Γ(a)]. Users interested
in statistical applications should use the normalised
versions (gamma_p and gamma_q).

All of these functions require *a > 0* and *z
>= 0*, otherwise they return the result of domain_error.

The final Policy argument is optional and can be used to control the behaviour of the function: how it handles errors, what level of precision to use etc. Refer to the policy documentation for more details.

The return type of these functions is computed using the *result
type calculation rules* when T1 and T2 are different types,
otherwise the return type is simply T1.

template <class T1, class T2>calculated-result-typegamma_p(T1 a, T2 z); template <class T1, class T2, class Policy>calculated-result-typegamma_p(T1 a, T2 z, const Policy&);

Returns the normalised lower incomplete gamma function of a and z:

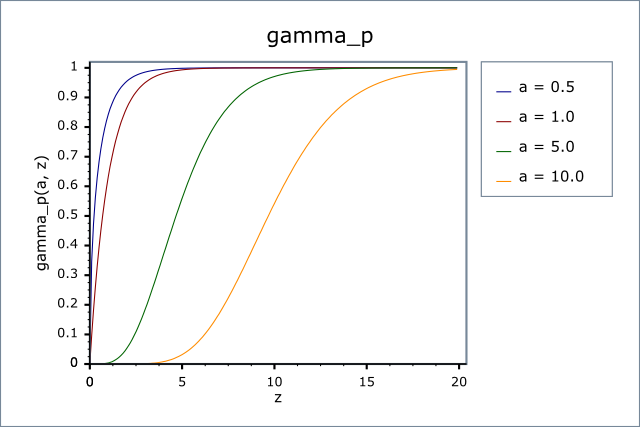

This function changes rapidly from 0 to 1 around the point z == a:

template <class T1, class T2>calculated-result-typegamma_q(T1 a, T2 z); template <class T1, class T2, class Policy>calculated-result-typegamma_q(T1 a, T2 z, const Policy&);

Returns the normalised upper incomplete gamma function of a and z:

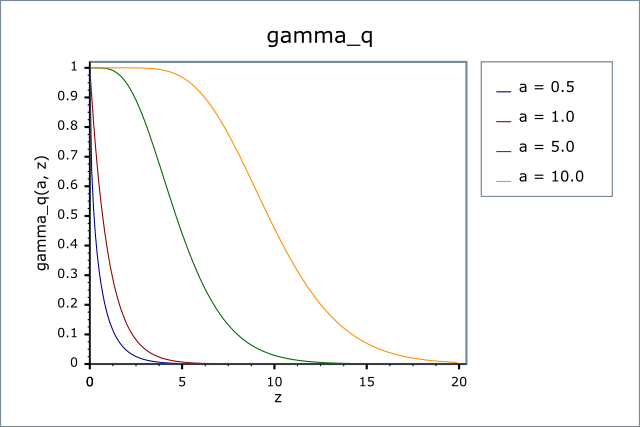

This function changes rapidly from 1 to 0 around the point z == a:

template <class T1, class T2>calculated-result-typetgamma_lower(T1 a, T2 z); template <class T1, class T2, class Policy>calculated-result-typetgamma_lower(T1 a, T2 z, const Policy&);

Returns the full (non-normalised) lower incomplete gamma function of a and z:

template <class T1, class T2>calculated-result-typetgamma(T1 a, T2 z); template <class T1, class T2, class Policy>calculated-result-typetgamma(T1 a, T2 z, const Policy&);

Returns the full (non-normalised) upper incomplete gamma function of a and z:

The following tables give peak and mean relative errors in over various domains of a and z, along with comparisons to the GSL-1.9 and Cephes libraries. Note that only results for the widest floating point type on the system are given as narrower types have effectively zero error.

Note that errors grow as *a* grows larger.

Note also that the higher error rates for the 80 and 128 bit long double results are somewhat misleading: expected results that are zero at 64-bit double precision may be non-zero - but exceptionally small - with the larger exponent range of a long double. These results therefore reflect the more extreme nature of the tests conducted for these types.

All values are in units of epsilon.

**Table 21. Errors In the Function gamma_p(a,z)**

Significand Size |
Platform and Compiler |
0.5 < a < 100 and 0.01*a < z < 100*a |
1x10 and 0.01*a < z < 100*a |
1e-6 < a < 1.7x10 and 1 < z < 100*a |
---|---|---|---|---|

53 |
Win32, Visual C++ 8 |
Peak=36 Mean=9.1 (GSL Peak=342 Mean=46) (Cephes Peak=491 Mean=102) |
Peak=4.5 Mean=1.4 (GSL Peak=4.8 Mean=0.76) (Cephes Peak=21 Mean=5.6) |
Peak=244 Mean=21 (GSL Peak=1022 Mean=1054)
(Cephes Peak~8x10 |

64 |
RedHat Linux IA32, gcc-3.3 |
Peak=241 Mean=36 |
Peak=4.7 Mean=1.5 |
Peak~30,220 Mean=1929 |

64 |
Redhat Linux IA64, gcc-3.4 |
Peak=41 Mean=10 |
Peak=4.7 Mean=1.4 |
Peak~30,790 Mean=1864 |

113 |
HPUX IA64, aCC A.06.06 |
Peak=40.2 Mean=10.2 |
Peak=5 Mean=1.6 |
Peak=5,476 Mean=440 |

**Table 22. Errors In the Function gamma_q(a,z)**

Significand Size |
Platform and Compiler |
0.5 < a < 100 and 0.01*a < z < 100*a |
1x10 and 0.01*a < z < 100*a |
1x10 and 1 < z < 100*a |
---|---|---|---|---|

53 |
Win32, Visual C++ 8 |
Peak=28.3 Mean=7.2 (GSL Peak=201 Mean=13) (Cephes Peak=556 Mean=97) |
Peak=4.8 Mean=1.6
(GSL Peak~1.3x10
(Cephes Peak~3x10 |
Peak=469 Mean=33 (GSL Peak=27,050 Mean=2159)
(Cephes Peak~8x10 |

64 |
RedHat Linux IA32, gcc-3.3 |
Peak=280 Mean=33 |
Peak=4.1 Mean=1.6 |
Peak=11,490 Mean=732 |

64 |
Redhat Linux IA64, gcc-3.4 |
Peak=32 Mean=9.4 |
Peak=4.7 Mean=1.5 |
Peak=6815 Mean=414 |

113 |
HPUX IA64, aCC A.06.06 |
Peak=37 Mean=10 |
Peak=11.2 Mean=2.0 |
Peak=4,999 Mean=298 |

**Table 23. Errors In the Function tgamma_lower(a,z)**

Significand Size |
Platform and Compiler |
0.5 < a < 100 and 0.01*a < z < 100*a |
1x10 and 0.01*a < z < 100*a |
---|---|---|---|

53 |
Win32, Visual C++ 8 |
Peak=5.5 Mean=1.4 |
Peak=3.6 Mean=0.78 |

64 |
RedHat Linux IA32, gcc-3.3 |
Peak=402 Mean=79 |
Peak=3.4 Mean=0.8 |

64 |
Redhat Linux IA64, gcc-3.4 |
Peak=6.8 Mean=1.4 |
Peak=3.4 Mean=0.78 |

113 |
HPUX IA64, aCC A.06.06 |
Peak=6.1 Mean=1.8 |
Peak=3.7 Mean=0.89 |

**Table 24. Errors In the Function tgamma(a,z)**

Significand Size |
Platform and Compiler |
0.5 < a < 100 and 0.01*a < z < 100*a |
1x10 and 0.01*a < z < 100*a |
---|---|---|---|

53 |
Win32, Visual C++ 8 |
Peak=5.9 Mean=1.5 |
Peak=1.8 Mean=0.6 |

64 |
RedHat Linux IA32, gcc-3.3 |
Peak=596 Mean=116 |
Peak=3.2 Mean=0.84 |

64 |
Redhat Linux IA64, gcc-3.4.4 |
Peak=40.2 Mean=2.5 |
Peak=3.2 Mean=0.8 |

113 |
HPUX IA64, aCC A.06.06 |
Peak=364 Mean=17.6 |
Peak=12.7 Mean=1.8 |

There are two sets of tests: spot tests compare values taken from Mathworld's online evaluator with this implementation to perform a basic "sanity check". Accuracy tests use data generated at very high precision (using NTL's RR class set at 1000-bit precision) using this implementation with a very high precision 60-term Lanczos approximation, and some but not all of the special case handling disabled. This is less than satisfactory: an independent method should really be used, but apparently a complete lack of such methods are available. We can't even use a deliberately naive implementation without special case handling since Legendre's continued fraction (see below) is unstable for small a and z.

These four functions share a common implementation since they are all related via:

1)

2)

3)

The lower incomplete gamma is computed from its series representation:

4)

Or by subtraction of the upper integral from either Γ(a) or 1 when *x
- (1*(3x)) > a and x > 1.1/.

The upper integral is computed from Legendre's continued fraction representation:

5)

When *(x > 1.1)* or by subtraction of the lower integral
from either Γ(a) or 1 when *x - (1*(3x)) < a/.

For *x < 1.1* computation of the upper integral is
more complex as the continued fraction representation is unstable in this
area. However there is another series representation for the lower integral:

6)

That lends itself to calculation of the upper integral via rearrangement to:

7)

Refer to the documentation for powm1 and tgamma1pm1 for details of their implementation. Note however that the precision of tgamma1pm1 is capped to either around 35 digits, or to that of the Lanczos approximation associated with type T - if there is one - whichever of the two is the greater. That therefore imposes a similar limit on the precision of this function in this region.

For *x < 1.1* the crossover point where the result
is ~0.5 no longer occurs for *x ~ y*. Using *x
* 0.75 < a* as the crossover criterion for *0.5 <
x <= 1.1* keeps the maximum value computed (whether it's the
upper or lower interval) to around 0.75. Likewise for *x <=
0.5* then using *-0.4 / log(x) < a* as
the crossover criterion keeps the maximum value computed to around 0.7
(whether it's the upper or lower interval).

There are two special cases used when a is an integer or half integer,
and the crossover conditions listed above indicate that we should compute
the upper integral Q. If a is an integer in the range *1 <=
a < 30* then the following finite sum is used:

9)

While for half integers in the range *0.5 <= a < 30*
then the following finite sum is used:

10)

These are both more stable and more efficient than the continued fraction alternative.

When the argument *a* is large, and *x ~ a*
then the series (4) and continued fraction (5) above are very slow to converge.
In this area an expansion due to Temme is used:

11)

12)

13)

14)

The double sum is truncated to a fixed number of terms - to give a specific
target precision - and evaluated as a polynomial-of-polynomials. There
are versions for up to 128-bit long double precision: types requiring greater
precision than that do not use these expansions. The coefficients C_{k}^{n} are
computed in advance using the recurrence relations given by Temme. The
zone where these expansions are used is

(a > 20) && (a < 200) && fabs(x-a)/a < 0.4

And:

(a > 200) && (fabs(x-a)/a < 4.5/sqrt(a))

The latter range is valid for all types up to 128-bit long doubles, and
is designed to ensure that the result is larger than 10^{-6}, the first range
is used only for types up to 80-bit long doubles. These domains are narrower
than the ones recommended by either Temme or Didonato and Morris. However,
using a wider range results in large and inexact (i.e. computed) values
being passed to the `exp`

and `erfc`

functions resulting
in significantly larger error rates. In other words there is a fine trade
off here between efficiency and error. The current limits should keep the
number of terms required by (4) and (5) to no more than ~20 at double precision.

For the normalised incomplete gamma functions, calculation of the leading power terms is central to the accuracy of the function. For smallish a and x combining the power terms with the Lanczos approximation gives the greatest accuracy:

15)

In the event that this causes underflow*overflow then the exponent
can be reduced by a factor of /a* and brought inside the power
term.

When a and x are large, we end up with a very large exponent with a base near one: this will not be computed accurately via the pow function, and taking logs simply leads to cancellation errors. The worst of the errors can be avoided by using:

16)

when *a-x* is small and a and x are large. There is
still a subtraction and therefore some cancellation errors - but the terms
are small so the absolute error will be small - and it is absolute rather
than relative error that counts in the argument to the *exp*
function. Note that for sufficiently large a and x the errors will still
get you eventually, although this does delay the inevitable much longer
than other methods. Use of *log(1+x)-x* here is inspired
by Temme (see references below).

- N. M. Temme, A Set of Algorithms for the Incomplete Gamma Functions, Probability in the Engineering and Informational Sciences, 8, 1994.
- N. M. Temme, The Asymptotic Expansion of the Incomplete Gamma Functions, Siam J. Math Anal. Vol 10 No 4, July 1979, p757.
- A. R. Didonato and A. H. Morris, Computation of the Incomplete Gamma Function Ratios and their Inverse. ACM TOMS, Vol 12, No 4, Dec 1986, p377.
- W. Gautschi, The Incomplete Gamma Functions Since Tricomi, In Tricomi's Ideas and Contemporary Applied Mathematics, Atti dei Convegni Lincei, n. 147, Accademia Nazionale dei Lincei, Roma, 1998, pp. 203--237. http://citeseer.ist.psu.edu/gautschi98incomplete.html
