Organization

Care and attention to detail was given, painstakingly, to the design and implementation of Phoenix.

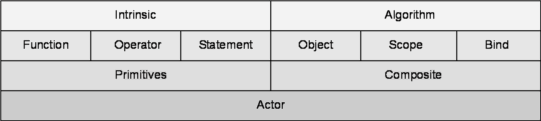

The library is organized in four layers:

organization

The modules are orthogonal, with no cyclic dependencies. Lower layers do not depend on higher layers. Modules in a layer do not depend on other modules in the same layer. This means, for example, that Bind can be completely discarded if it is not required; or one could perhaps take out Operator and Statement and just use Function, which may be desirable in a pure FP application.

The library has grown from the original Phoenix but still comprises only header files. There are no object files to link against.

Core

The lowest two layers comprise the core.

The Actor is the main concept behind the library. Lazy functions are abstracted as actors. There are only 2 kinds of actors:

  1. Primitives
  2. Composites

Primitives provide the basic building blocks of functionality within Phoenix. Composites are used to combine these primitives together to provide more powerful functionality.

Composites are composed of zero or more actors. Each actor in a composite can again be another composite.

Table 1.2. Modules

Module

Description

Function

Lazy functions support (e.g. add)

Operator

Lazy operators support (e.g. +)

Statement

Lazy statments (e.g. if_, while_)

Object

Lazy casts (e.g. static_cast_), object creation destruction (e.g. new_, delete_)

Scope

Support for scopes, local variables and lambda-lambda

Bind

Lazy functions from free functions, member functions or member variables.

Container

Set of predefined "lazy" functions that work on STL containers and sequences (e.g. push_back).

Algorithm

Set of predefined "lazy" versions of the STL algorithms (e.g. find_if).


Each module is defined in a header file with the same name. For example, the core module is defined in <boost/spirit/home/phoenix/core.hpp>.

Table 1.3. Includes

Module

File

Core

#include <boost/spirit/home/phoenix/core.hpp>

Function

#include <boost/spirit/home/phoenix/function.hpp>

Operator

#include <boost/spirit/home/phoenix/operator.hpp>

Statement

#include <boost/spirit/home/phoenix/statement.hpp>

Object

#include <boost/spirit/home/phoenix/object.hpp>

Scope

#include <boost/spirit/home/phoenix/scope.hpp>

Bind

#include <boost/spirit/home/phoenix/bind.hpp>

Container

#include <boost/spirit/home/phoenix/container.hpp>

Algorithm

#include <boost/spirit/home/phoenix/algorithm.hpp>
