intersection

Calculate the intersection of two geometries.

Description

The free function intersection calculates the spatial set theoretic intersection of two geometries.

Synopsis

template<typename Geometry1, typename Geometry2, typename GeometryOut>
bool intersection(Geometry1 const & geometry1, Geometry2 const & geometry2, GeometryOut & geometry_out)

Parameters

Type	Concept	Name	Description
Geometry1 const &	Any type fulfilling a Geometry Concept	geometry1	A model of the specified concept
Geometry2 const &	Any type fulfilling a Geometry Concept	geometry2	A model of the specified concept
GeometryOut &	Collection of geometries (e.g. std::vector, std::deque, boost::geometry::multi*) of which the value_type fulfills a Point, LineString or Polygon concept, or it is the output geometry (e.g. for a box)	geometry_out	The output geometry, either a multi_point, multi_polygon, multi_linestring, or a box (for intersection of two boxes)

Header

Either

#include <boost/geometry.hpp>

#include <boost/geometry/algorithms/intersection.hpp>

Conformance

The function intersection implements function Intersection from the OGC Simple Feature Specification.

Behavior

Case	Behavior
GeometryOut is a Point	Calculates intersection points of input geometries
GeometryOut is a Linestring	Calculates intersection linestrings of input (multi)linestrings
GeometryOut is a Polygon	Calculates intersection polygons of input (multi)polygons and/or boxes

	Note
	Check the Polygon Concept for the rules that polygon input for this algorithm should fulfill

Example

Shows the intersection of two polygons

#include <iostream>
#include <deque>

#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>

#include <boost/foreach.hpp>


int main()
{
    typedef boost::geometry::model::polygon<boost::geometry::model::d2::point_xy<double> > polygon;

    polygon green, blue;

    boost::geometry::read_wkt(
        "POLYGON((2 1.3,2.4 1.7,2.8 1.8,3.4 1.2,3.7 1.6,3.4 2,4.1 3,5.3 2.6,5.4 1.2,4.9 0.8,2.9 0.7,2 1.3)"
            "(4.0 2.0, 4.2 1.4, 4.8 1.9, 4.4 2.2, 4.0 2.0))", green);

    boost::geometry::read_wkt(
        "POLYGON((4.0 -0.5 , 3.5 1.0 , 2.0 1.5 , 3.5 2.0 , 4.0 3.5 , 4.5 2.0 , 6.0 1.5 , 4.5 1.0 , 4.0 -0.5))", blue);

    std::deque<polygon> output;
    boost::geometry::intersection(green, blue, output);

    int i = 0;
    std::cout << "green && blue:" << std::endl;
    BOOST_FOREACH(polygon const& p, output)
    {
        std::cout << i++ << ": " << boost::geometry::area(p) << std::endl;
    }


    return 0;
}

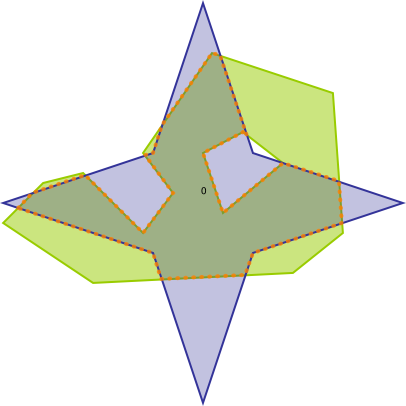

Output:

green && blue:
0: 2.50205
