Modern micro-processors contain integrated memory controllers that are connected via channels to the memory. Accessing the memory can be organized in two kinds:
Uniform Memory Access (UMA) and Non-Uniform Memory Access (NUMA).

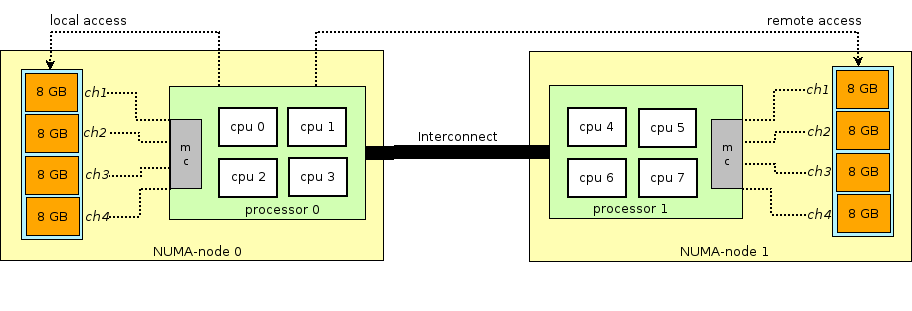

In contrast to UMA, that provides a centralized pool of memory (and thus does not scale after a certain number of processors), a NUMA architecture divides the memory into local and remote memory relative to the micro-processor.
Local memory is directly attached to the processor's integrated memory controller. Memory connected to the memory controller of another micro-processor (multi-socket systems) is considered as remote memory. If a memory controller access remote memory it has to traverse the interconnect^[8] and connect to the remote memory controller.
Thus accessing remote memory adds additional latency overhead to local memory access. Because of the different memory locations, a NUMA-system experiences non-uniform memory access time.
As a consequence the best performance is achieved by keeping the memory access local.

NUMA support in Boost.Fiber

Because only a subset of the NUMA-functionality is exposed by several operating systems, Boost.Fiber provides only a minimalistic NUMA API.

In order to keep the memory access local as possible, the NUMA topology must be evaluated.

std::vector< boost::fibers::numa::node > topo = boost::fibers::numa::topology();
for ( auto n : topo) {
    std::cout << "node: " << n.id << " | ";
    std::cout << "cpus: ";
    for ( auto cpu_id : n.logical_cpus) {
        std::cout << cpu_id << " ";
    }
    std::cout << "| distance: ";
    for ( auto d : n.distance) {
        std::cout << d << " ";
    }
    std::cout << std::endl;
}
std::cout << "done" << std::endl;

output:
    node: 0 | cpus: 0 1 2 3 4 5 6 7 16 17 18 19 20 21 22 23 | distance: 10 21
    node: 1 | cpus: 8 9 10 11 12 13 14 15 24 25 26 27 28 29 30 31 | distance: 21 10
    done

The example shows that the systems consits out of 2 NUMA-nodes, to each NUMA-node belong 16 logical cpus. The distance measures the costs to access the memory of another NUMA-node. A NUMA-node has always a distance 10 to itself (lowest possible value).
The position in the array corresponds with the NUMA-node ID.

Some work-loads benefit from pinning threads to a logical cpus. For instance scheduling algorithm numa::work_stealing pins the thread that runs the fiber scheduler to a logical cpu. This prevents the operating system scheduler to move the thread to another logical cpu that might run other fiber scheduler(s) or migrating the thread to a logical cpu part of another NUMA-node.

void thread( std::uint32_t cpu_id, std::uint32_t node_id, std::vector< boost::fibers::numa::node > const& topo) {
    // thread registers itself at work-stealing scheduler
    boost::fibers::use_scheduling_algorithm< boost::fibers::algo::numa::work_stealing >( cpu_id, node_id, topo);
    ...
}

// evaluate the NUMA topology
std::vector< boost::fibers::numa::node > topo = boost::fibers::numa::topology();
// start-thread runs on NUMA-node `0`
auto node = topo[0];
// start-thread is pinnded to first cpu ID in the list of logical cpus of NUMA-node `0`
auto start_cpu_id = * node.logical_cpus.begin();
// start worker-threads first
std::vector< std::thread > threads;
for ( auto & node : topo) {
    for ( std::uint32_t cpu_id : node.logical_cpus) {
        // exclude start-thread
        if ( start_cpu_id != cpu_id) {
            // spawn thread
            threads.emplace_back( thread, cpu_id, node.id, std::cref( topo) );
        }
    }
}
// start-thread registers itself on work-stealing scheduler
boost::fibers::use_scheduling_algorithm< boost::fibers::algo::numa::work_stealing >( start_cpu_id, node.id, topo);
...

The example evaluates the NUMA topology with boost::fibers::numa::topology() and spawns for each logical cpu a thread. Each spawned thread installs the NUMA-aware work-stealing scheduler. The scheduler pins the thread to the logical cpu that was specified at construction.
If the local queue of one thread runs out of ready fibers, the thread tries to steal a ready fiber from another thread running at logical cpu that belong to the same NUMA-node (local memory access). If no fiber could be stolen, the thread tries to steal fibers from logical cpus part of other NUMA-nodes (remote memory access).

Synopsis

#include <boost/fiber/numa/pin_thread.hpp>
#include <boost/fiber/numa/topology.hpp>

namespace boost {
namespace fibers {
namespace numa {

struct node {
    std::uint32_t                   id;
    std::set< std::uint32_t >       logical_cpus;
    std::vector< std::uint32_t >    distance;
};
bool operator<( node const&, node const&) noexcept;

std::vector< node > topology();

void pin_thread( std::uint32_t);
void pin_thread( std::uint32_t, std::thread::native_handle_type);

}}}

#include <boost/fiber/numa/algo/work_stealing.hpp>

namespace boost {
namespace fibers {
namespace numa {
namespace algo {

class work_stealing;

}}}

Class numa::node

#include <boost/fiber/numa/topology.hpp>

namespace boost {
namespace fibers {
namespace numa {

struct node {
    std::uint32_t                   id;
    std::set< std::uint32_t >       logical_cpus;
    std::vector< std::uint32_t >    distance;
};
bool operator<( node const&, node const&) noexcept;

}}}

Data member id

std::uint32_t id;

Data member logical_cpus

std::set< std::uint32_t > logical_cpus;

Data member distance

std::vector< std::uint32_t > distance;

Member function operator<()

bool operator<( node const& lhs, node const& rhs) const noexcept;

Non-member function numa::topology()

#include <boost/fiber/numa/topology.hpp>

namespace boost {
namespace fibers {
namespace numa {

std::vector< node > topology();

}}}

Non-member function numa::pin_thread()

#include <boost/fiber/numa/pin_thread.hpp>

namespace boost {
namespace fibers {
namespace numa {

void pin_thread( std::uint32_t cpu_id);
void pin_thread( std::uint32_t cpu_id, std::thread::native_handle_type h);

}}}

Class numa::work_stealing

This class implements algorithm; the thread running this scheduler is pinned to the given logical cpu. If the local ready-queue runs out of ready fibers, ready fibers are stolen from other schedulers that run on logical cpus that belong to the same NUMA-node (local memory access).
If no ready fibers can be stolen from the local NUMA-node, the algorithm selects schedulers running on other NUMA-nodes (remote memory access).
The victim scheduler (from which a ready fiber is stolen) is selected at random.

#include <boost/fiber/numa/algo/work_stealing.hpp>

namespace boost {
namespace fibers {
namespace numa {
namespace algo {

class work_stealing : public algorithm {
public:
    work_stealing( std::uint32_t cpu_id,
                   std::uint32_t node_id,
                   std::vector< boost::fibers::numa::node > const& topo,
                   bool suspend = false);

    work_stealing( work_stealing const&) = delete;
    work_stealing( work_stealing &&) = delete;

    work_stealing & operator=( work_stealing const&) = delete;
    work_stealing & operator=( work_stealing &&) = delete;

    virtual void awakened( context *) noexcept;

    virtual context * pick_next() noexcept;

    virtual bool has_ready_fibers() const noexcept;

    virtual void suspend_until( std::chrono::steady_clock::time_point const&) noexcept;

    virtual void notify() noexcept;
};

}}}}

Constructor

work_stealing( std::uint32_t cpu_id, std::uint32_t node_id,
               std::vector< boost::fibers::numa::node > const& topo,
               bool suspend = false);

Member function awakened()

virtual void awakened( context * f) noexcept;

Member function pick_next()

virtual context * pick_next() noexcept;

Member function has_ready_fibers()

virtual bool has_ready_fibers() const noexcept;

Member function suspend_until()

virtual void suspend_until( std::chrono::steady_clock::time_point const& abs_time) noexcept;

Member function notify()

virtual void notify() noexcept = 0;
