Functor front-end

The functor front-end is the preferred front-end at the moment. It is more powerful than the standard front-end and has a more readable transition table. It also makes it easier to reuse parts of state machines. Like eUML, it also comes with a good deal of predefined actions. Actually, eUML generates a functor front-end through Boost.Typeof and Boost.Proto so both offer the same functionality.

The rows which MSM offered in the previous front-end come in different flavors. We saw the a_row, g_row, _row, row, not counting internal rows. This is already much to know, so why define new rows? These types have some disadvantages:

Transition table

We can change the definition of the simple tutorial's transition table to:


struct transition_table : mpl::vector<
//    Start     Event        Target      Action                      Guard
//   +---------+------------+-----------+---------------------------+----------------------------+
Row  < Stopped , play       ,  Playing  , start_playback            , none                       >,
Row  < Stopped , open_close ,  Open     , open_drawer               , none                       >,
Row  < Stopped , stop       ,  Stopped  , none                      , none                       >,
//   +---------+------------+-----------+---------------------------+----------------------------+
Row  < Open    , open_close ,  Empty    , close_drawer              , none                       >,
//   +---------+------------+-----------+---------------------------+----------------------------+
Row  < Empty   , open_close ,  Open     , open_drawer               , none                       >,
Row  < Empty   , cd_detected,  Stopped  , store_cd_info             , good_disk_format           >,
g_row< Empty   , cd_detected,  Playing  , &player_::store_cd_info   , &player_::auto_start       >,
//   +---------+------------+-----------+---------------------------+----------------------------+
Row  < Playing , stop       ,  Stopped  , stop_playback             , none                       >,
Row  < Playing , pause      ,  Paused   , pause_playback            , none                       >,
Row  < Playing , open_close ,  Open     , stop_and_open             , none                       >,
//   +---------+------------+-----------+---------------------------+----------------------------+
Row  < Paused  , end_pause  ,  Playing  , resume_playback           , none                       >,
Row  < Paused  , stop       ,  Stopped  , stop_playback             , none                       >,
Row  < Paused  , open_close ,  Open     , stop_and_open             , none                       >
//   +---------+------------+-----------+---------------------------+----------------------------+
> {};


Transitions are now of type "Row" with exactly 5 template arguments: source state, event, target state, action and guard. Wherever there is nothing (for example actions and guards), write "none". Actions and guards are no more methods but functors getting as arguments the detected event, the state machine, source and target state:

struct store_cd_info
{
    template <class Fsm,class Evt,class SourceState,class TargetState>
    void operator()(Evt const&, Fsm& fsm, SourceState&,TargetState& )
    {
        cout << "player::store_cd_info" << endl;
        fsm.process_event(play());
    }
};

The advantage of functors compared to functions are that functors are generic and reusable. They also allow passing more parameters than just events. The guard functors are the same but have an operator() returning a bool.

It is also possible to mix rows from different front-ends. To show this, a g_row has been left in the transition table. Note: in case the action functor is used in the transition table of a state machine contained inside a top-level state machine, the “fsm” parameter refers to the lowest-level state machine (referencing this action), not the top-level one.

To illustrate the reusable point, MSM comes with a whole set of predefined functors. Please refer to eUML for the full list. For example, we are now going to replace the first action by an action sequence and the guard by a more complex functor.

We decide we now want to execute two actions in the first transition (Stopped -> Playing). We only need to change the action start_playback to

ActionSequence_< mpl::vector<some_action, start_playback> >

and now will execute some_action and start_playback every time the transition is taken. ActionSequence_ is a functor calling each action of the mpl::vector in sequence.

We also want to replace good_disk_format by a condition of the type: “good_disk_format && (some_condition || some_other_condition)”. We can achieve this using And_ and Or_ functors:

And_<good_disk_format,Or_< some_condition , some_other_condition> >

It even starts looking like functional programming. MSM ships with functors for operators, state machine usage, STL algorithms or container methods.

Defining states with entry/exit actions

You probably noticed that we just showed a different transition table and that we even mixed rows from different front-ends. This means that you can do this and leave the definitions for states unchanged. Most examples are doing this as it is the simplest solution. You still enjoy the simplicity of the first front-end with the extended power of the new transition types. This tutorial, adapted from the earlier example does just this.

Of course, it is also possible to define states where entry and exit actions are also provided as functors as these are generated by eUML and both front-ends are equivalent. For example, we can define a state as:

struct Empty_Entry
{
    template <class Event,class Fsm,class State>
    void operator()(Event const&,Fsm&,State&)
    {
        ...
    }
}; // same for Empty_Exit
struct Empty_tag {};
struct Empty : public msm::front::euml::func_state<Empty_tag,Empty_Entry,Empty_Exit>{};

This also means that you can, like in the transition table, write entry / exit actions made of more complicated action combinations. The previous example can therefore be rewritten.

Usually, however, one will probably use the standard state definition as it provides the same capabilities as this front-end state definition, unless one needs some of the shipped predefined functors or is a fan of functional programming.

What do you actually do inside actions / guards (Part 2)?

Using the basic front-end, we saw how to pass data to actions through the event, that data common to all states could be stored in the state machine, state relevant data could be stored in the state and access as template parameter in the entry / exit actions. What was however missing was the capability to access relevant state data in the transition action. This is possible with this front-end. A transition's source and target state are also given as arguments. If the current calculation's state was to be found in the transition's source state (whatever it is), we could access it:

struct send_rocket
{
    template <class Fsm,class Evt,class SourceState,class TargetState>
    void operator()(Evt const&, Fsm& fsm, SourceState& src,TargetState& )
    {
        fire_rocket(evt.direction, src.current_calculation);
    }
};

It was a little awkward to generate new events inside actions with the basic front-end. With the functor front-end it is much cleaner:

struct send_rocket
{
    template <class Fsm,class Evt,class SourceState,class TargetState>
    void operator()(Evt const& evt, Fsm& fsm, SourceState& src,TargetState&)
    {
        fire_rocket(evt.direction, src.current_calculation);
        fsm.process_event(rocket_launched());
    }
};

Defining a simple state machine

Like states, state machines can be defined using the previous front-end, as the previous example showed, or with the functor front-end, which allows you to define a state machine entry and exit functions as functors, as in this example.

Anonymous transitions

Anonymous (completion) transitions are transitions without a named event. We saw how this front-end uses none when no action or guard is required. We can also use none instead of an event to mark an anonymous transition. For example, the following transition makes an immediate transition from State1 to State2:

Row < State1 , none , State2 >

The following transition does the same but calling an action in the process:

Row < State1 , none , State2 , State1ToState2, none >

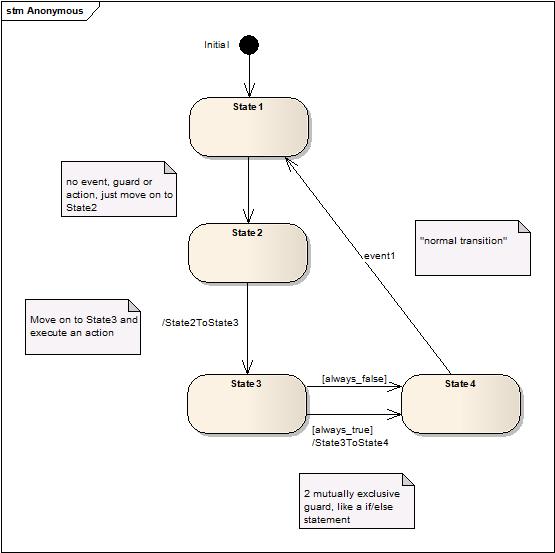

The following diagram shows an example and its implementation:

Internal transitions

The following example uses internal transitions with the functor front-end. As for the simple standard front-end, both methods of defining internal transitions are supported:

  • providing a Row in the state machine's transition table with none as target state defines an internal transition.

  • providing an internal_transition_table made of Internal rows inside a state or submachine defines UML-conform internal transitions with higher priority.

  • transitions defined inside internal_transition_table require no source or target state as the source state is known (Internal really are Row without a source or target state) .

Like for the standard front-end internal transitions, internal transition tables are added into the main state machine's table, thus allowing you to distribute the transition table definition and reuse states.

There is an added bonus offered for submachines, which can have both the standard transition_table and an internal_transition_table (which has higher priority). This makes it easier if you decide to make a full submachine from a state later. It is also slightly faster than the standard alternative, adding orthogonal regions, because event dispatching will, if accepted by the internal table, not continue to the subregions. This gives you a O(1) dispatch instead of O(number of regions). While the example is with eUML, the same is also possible with this front-end.

Kleene (any) event

Normally, MSM requires an event to fire a transition. But there are cases, where any event, no matter which one would do:

  • If you want to reduce the number of transitions: any event would do, possibly will guards decide what happens

  • Pseudo entry states do not necessarily want to know the event which caused their activation, or they might want to know only a property of it.

MSM supports a boost::any as an acceptable event. This event will match any event, meaning that if a transition with boost::any as event originates from the current state, this transition would fire (provided no guards or transition with a higher priority fires first). This event is named Kleene, as reference top the Kleene star used in a regex.

For example, this transition on a state machine instance named fsm:

Row < State1, boost::any, State2>

will fire if State1 is active and an event is processed:

fsm.process_event(whatever_event());

At this point, you can use this any event in transition actions to get back to the original event by calling for example boost::any::type().

It is also possible to support your own Kleene events by specializing boost::msm::is_kleene_event for a given event, for example:

namespace boost { namespace msm{
    template<>
    struct is_kleene_event< my_event >
    {
      typedef boost::mpl::true_ type;
    };
}}

The only requirement is that this event must have a copy constructor from the event originally processed on the state machine.
