is_valid (with failure value)

Checks if a geometry is valid (in the OGC sense)

Synopsis

template<typename Geometry>
bool is_valid(Geometry const & geometry, validity_failure_type & failure)

Parameters

Type

Concept

Name

Description

Geometry const &

Any type fulfilling a Geometry Concept

geometry

A model of the specified concept

validity_failure_type &

failure

An enumeration value indicating that the geometry is valid or not, and if not valid indicating the reason why

Returns

Returns true if the geometry is valid (in the OGC sense); furthermore, the following geometries are considered valid: multi-geometries with no elements, linear geometries containing spikes, areal geometries with duplicate (consecutive) points

Header

Either

#include <boost/geometry.hpp>

Or

#include <boost/geometry/algorithms/is_valid.hpp>

Conformance

The function is_valid is not defined by OGC.

Supported geometries

Geometry

Status

Point

ok

Segment

ok

Box

ok

Linestring

ok

Ring

ok

Polygon

ok

MultiPoint

ok

MultiLinestring

ok

MultiPolygon

ok

Variant

ok

Complexity

Constant-time for points, segments, boxes and multi-points

Linear for linestrings and multi-linestrings

Linearithmic for rings

Currently, worst-case quadratic for polygons and multi-polygons

Example

Checks whether a geometry is valid and, if not valid, checks if it could be fixed by bg::correct; if so bg::correct is called on the geometry

#include <iostream>

#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/polygon.hpp>


int main()
{
    using point_type = boost::geometry::model::d2::point_xy<double>;
    using polygon_type = boost::geometry::model::polygon<point_type>;

    polygon_type poly;
    boost::geometry::read_wkt("POLYGON((0 0,0 10,10 10,10 0),(0 0,9 2,9 1,0 0),(0 0,2 9,1 9,0 0))", poly);

    std::cout << "original geometry: " << boost::geometry::dsv(poly) << std::endl;
    boost::geometry::validity_failure_type failure;
    bool valid = boost::geometry::is_valid(poly, failure);

    // if the invalidity is only due to lack of closing points and/or wrongly oriented rings, then bg::correct can fix it
    bool could_be_fixed = (failure == boost::geometry::failure_not_closed
                           || failure == boost::geometry::failure_wrong_orientation);
    std::cout << "is valid? " << (valid ? "yes" : "no") << std::endl;
    if (! valid)
    {
        std::cout << "can boost::geometry::correct remedy invalidity? " << (could_be_fixed ? "possibly yes" : "no") << std::endl;
        if (could_be_fixed)
        {
            boost::geometry::correct(poly);
            std::cout << "after correction: " << (boost::geometry::is_valid(poly) ? "valid" : "still invalid") << std::endl;
            std::cout << "corrected geometry: " << boost::geometry::dsv(poly) << std::endl;
        }
    }

    return 0;
}

Output:

original geometry: (((0, 0), (0, 10), (10, 10), (10, 0)), ((0, 0), (9, 2), (9, 1), (0, 0)), ((0, 0), (2, 9), (1, 9), (0, 0)))
is valid? no
can boost::geometry::correct remedy invalidity? possibly yes
after correction: valid
corrected geometry: (((0, 0), (0, 10), (10, 10), (10, 0), (0, 0)), ((0, 0), (9, 1), (9, 2), (0, 0)), ((0, 0), (2, 9), (1, 9), (0, 0)))

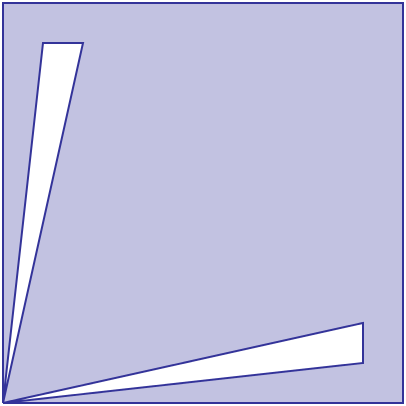

is_valid_failure_example

See also
