buffer (with strategies)

Calculates the buffer of a geometry.

Description

The free function buffer calculates the buffer (a polygon being the spatial point set collection within a specified maximum distance from a geometry) of a geometry.

Synopsis

template<typename GeometryIn, typename MultiPolygon, typename DistanceStrategy, typename SideStrategy,
         typename JoinStrategy, typename EndStrategy, typename PointStrategy>
void buffer(GeometryIn const & geometry_in, MultiPolygon & geometry_out, DistanceStrategy const & distance_strategy,
            SideStrategy const & side_strategy, JoinStrategy const & join_strategy, EndStrategy const & end_strategy,
            PointStrategy const & point_strategy)

Parameters

Type

Concept

Name

Description

GeometryIn const &

Any type fulfilling a Geometry Concept

geometry_in

A model of the specified concept

MultiPolygon &

A type fulfilling the MultiPolygon Concept

geometry_out

output multi polygon (or std:: collection of polygons), will contain a buffered version of the input geometry

DistanceStrategy const &

A strategy defining distance (or radius)

distance_strategy

The distance strategy to be used

SideStrategy const &

A strategy defining creation along sides

side_strategy

The side strategy to be used

JoinStrategy const &

A strategy defining creation around convex corners

join_strategy

The join strategy to be used

EndStrategy const &

A strategy defining creation at linestring ends

end_strategy

The end strategy to be used

PointStrategy const &

A strategy defining creation around points

point_strategy

The point strategy to be used

Header

Either

#include <boost/geometry.hpp>

Or

#include <boost/geometry/algorithms/buffer.hpp>

Strategies

The 5 strategies give the user control to the generated buffer

By specifying a negative distance for the distance_strategy, for the (multi) polygon case, the polygon will be smaller (also known as deflate). The distance cannot be 0.

The next figure shows where in the generated buffer the strategies have effect

buffer_strategies

Conformance

The function buffer implements function Buffer from the OGC Simple Feature Specification.

It is conformant if used with the following combination of strategies: join_round, end_round, distance_symmetric, point_circle, side_straight

Supported geometries

2D Cartesian

Geographic

Point

ok

ok

Segment

nyi

nyi

Box

nyi

nyi

Linestring

ok

nyi

Ring

ok

nyi

Polygon

ok

nyi

MultiPoint

ok

nyi

MultiLinestring

ok

nyi

MultiPolygon

ok

nyi

Examples

Shows how the buffer algorithm can be used to create a buffer of a linestring, a multi point, a multi polygon

#include <boost/geometry.hpp>
#include <boost/geometry/geometries/point_xy.hpp>
#include <boost/geometry/geometries/geometries.hpp>


int main()
{
    typedef double coordinate_type;
    typedef boost::geometry::model::d2::point_xy<coordinate_type> point;
    typedef boost::geometry::model::polygon<point> polygon;

    // Declare strategies
    const double buffer_distance = 1.0;
    const int points_per_circle = 36;
    boost::geometry::strategy::buffer::distance_symmetric<coordinate_type> distance_strategy(buffer_distance);
    boost::geometry::strategy::buffer::join_round join_strategy(points_per_circle);
    boost::geometry::strategy::buffer::end_round end_strategy(points_per_circle);
    boost::geometry::strategy::buffer::point_circle circle_strategy(points_per_circle);
    boost::geometry::strategy::buffer::side_straight side_strategy;

    // Declare output
    boost::geometry::model::multi_polygon<polygon> result;

    // Declare/fill a linestring
    boost::geometry::model::linestring<point> ls;
    boost::geometry::read_wkt("LINESTRING(0 0,4 5,7 4,10 6)", ls);

    // Create the buffer of a linestring
    boost::geometry::buffer(ls, result,
                distance_strategy, side_strategy,
                join_strategy, end_strategy, circle_strategy);


    // Declare/fill a multi point
    boost::geometry::model::multi_point<point> mp;
    boost::geometry::read_wkt("MULTIPOINT((3 3),(4 4),(6 2))", mp);

    // Create the buffer of a multi point
    boost::geometry::buffer(mp, result,
                distance_strategy, side_strategy,
                join_strategy, end_strategy, circle_strategy);


    // Declare/fill a multi_polygon
    boost::geometry::model::multi_polygon<polygon> mpol;
    boost::geometry::read_wkt("MULTIPOLYGON(((0 1,2 5,5 3,0 1)),((1 1,5 2,5 0,1 1)))", mpol);

    // Create the buffer of a multi polygon
    boost::geometry::buffer(mpol, result,
                distance_strategy, side_strategy,
                join_strategy, end_strategy, circle_strategy);


    return 0;
}

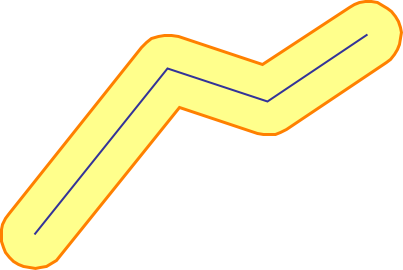

The linestring case

buffer_linestring

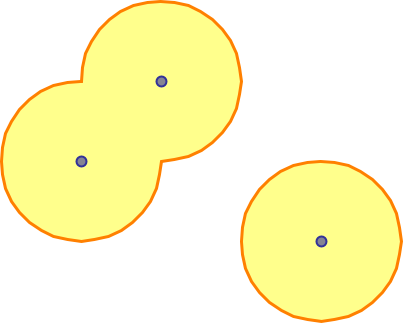

The multi_point case

buffer_multi_point

The multi_polygon case

buffer_multi_polygon

Available Strategies
