convex_hull

Calculates the convex hull of a geometry.

Description

The free function convex_hull calculates the convex hull of a geometry.

Synopsis

template<typename Geometry1, typename Geometry2>
void convex_hull(Geometry1 const & geometry, Geometry2 & hull)

Parameters

Type

Concept

Name

Description

Geometry1 const &

Any type fulfilling a Geometry Concept

geometry

A model of the specified concept, input geometry

Geometry2 &

Any type fulfilling a Geometry Concept

hull

A model of the specified concept which is set to the convex hull

Header

Either

#include <boost/geometry/geometry.hpp>

Or

#include <boost/geometry/algorithms/convex_hull.hpp>

Complexity

Linear

Example

Shows how to generate the convex_hull of a geometry

#include <iostream>

#include <boost/geometry.hpp>
#include <boost/geometry/geometries/polygon.hpp>
#include <boost/geometry/geometries/adapted/boost_tuple.hpp>

BOOST_GEOMETRY_REGISTER_BOOST_TUPLE_CS(cs::cartesian)


int main()
{
    typedef boost::tuple<double, double> point;
    typedef boost::geometry::model::polygon<point> polygon;

    polygon poly;
    boost::geometry::read_wkt("polygon((2.0 1.3, 2.4 1.7, 2.8 1.8, 3.4 1.2, 3.7 1.6,3.4 2.0, 4.1 3.0"
        ", 5.3 2.6, 5.4 1.2, 4.9 0.8, 2.9 0.7,2.0 1.3))", poly);

    polygon hull;
    boost::geometry::convex_hull(poly, hull);

    using boost::geometry::dsv;
    std::cout
        << "polygon: " << dsv(poly) << std::endl
        << "hull: " << dsv(hull) << std::endl
        ;


    return 0;
}

Output:

polygon: (((2, 1.3), (2.4, 1.7), (2.8, 1.8), (3.4, 1.2), (3.7, 1.6), (3.4, 2), (4.1, 3), (5.3, 2.6), (5.4, 1.2), (4.9, 0.8), (2.9, 0.7), (2, 1.3)))
hull: (((2, 1.3), (2.4, 1.7), (4.1, 3), (5.3, 2.6), (5.4, 1.2), (4.9, 0.8), (2.9, 0.7), (2, 1.3)))

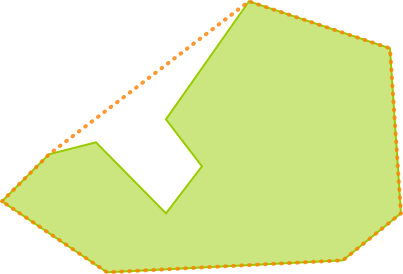

convex_hull
